How Does a Soldering Gun Works

What is a Soldering Gun?


A soldering gun is a handheld tool used for soldering, which is the process of joining two materials together using a melted filler metal called solder. The shape of a soldering gun resembles a pistol, providing a comfortable grip and precise control.


It consists of a heating element, a metal tip, and a trigger mechanism. When the trigger is pulled, the heating element rapidly heats up the tip, melting the solder and allowing it to flow onto the joint, creating a strong and reliable bond between the materials. Soldering guns are commonly used in electronics, plumbing, and various DIY projects for tasks such as connecting wires, fixing components, and creating precise solder joints.

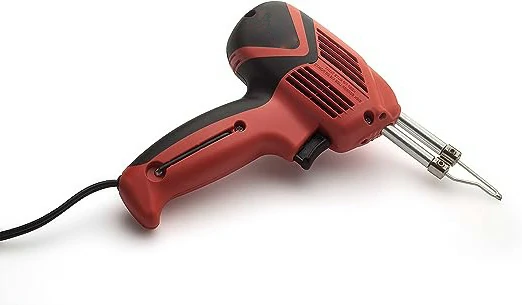

soldering gun

Features and Functions of a Soldering Gun


Key Features


1. Transformer-Based Heating: Unlike soldering irons, soldering guns use a transformer to heat the tip directly. This design allows for quick heating and cooling, making it more efficient and energy-saving.

2. Trigger Mechanism: The trigger provides instant control over the heating process, which helps in precise application and avoids unnecessary heating.

3. Ergonomic Design: Many soldering guns come with comfortable grips and user-friendly designs, making them easy to handle even during prolonged use.


Primary Functions


  • Heating: The soldering gun rapidly heats its metal tip to the required temperature for melting solder.
  • Solder Melting: It melts solder, a metal alloy with a low melting point, to create bonds between materials.
  • Joint Formation: By melting solder, the gun forms strong joints between wires, components, or metals.
  • Precision: It offers precise heat application, crucial for delicate tasks.
  • Quick Operation: Soldering guns heat up faster than traditional soldering irons, reducing waiting time.
  • Versatility: Suitable for a range of applications from fine-detail electronics soldering to heavy-duty metalwork.
  • Efficient Repairs: Ideal for repairing electronic devices, appliances, plumbing fixtures, and more.
  • Creative Crafting: Used in crafting for creating intricate designs and connections, such as in jewelry making.


How the Soldering Gun Works


The soldering gun uses high current and voltage to generate heat at the gun terminal, which melts the soldering wire. The molten solder penetrates the parts to be welded and solidifies upon cooling, forming a strong connection. The power of the soldering gun depends on the soldering machine and the soldering material.


Advantages of a Soldering Gun


1. High Efficiency: Quick heating and cooling increase productivity.

2. Safe Operation: Reliable performance reduces the risk of accidents.

3. Convenience: Easy to adjust and maintain, with minimal downtime.

4. Versatility: Suitable for both professional and DIY tasks.

5. Low Investment: Requires less investment compared to other soldering equipment.




Avoid Touching the Heated Tip: The tip gets extremely hot and can cause burns.

Proper Placement: Ensure the gun is placed on a stand without touching surrounding objects or wires.

Regular Cleaning: Clean the tip regularly to remove impurities.

Safe Storage: Unplug and allow the gun to cool before storing it.

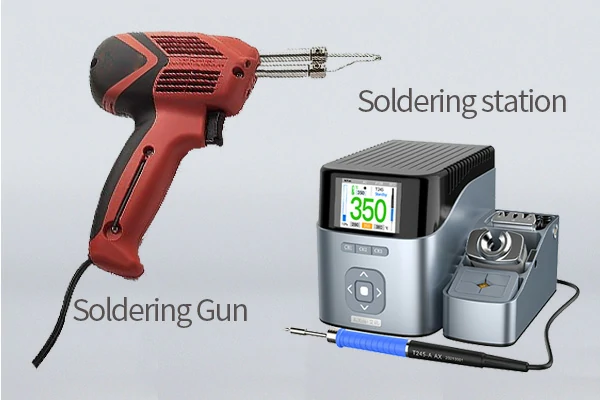

soldering gun vs soldering station


Soldering Station vs. Soldering Gun


Soldering Station

A soldering station consists of a power unit and a separate soldering iron. It provides precise temperature control and is commonly used in professional settings for detailed and intricate soldering tasks.


Soldering Gun

A soldering gun combines the heating element, tip, and trigger mechanism in one unit. It is ideal for simpler tasks and is preferred by hobbyists and DIY enthusiasts for its quick heating and ease of use.

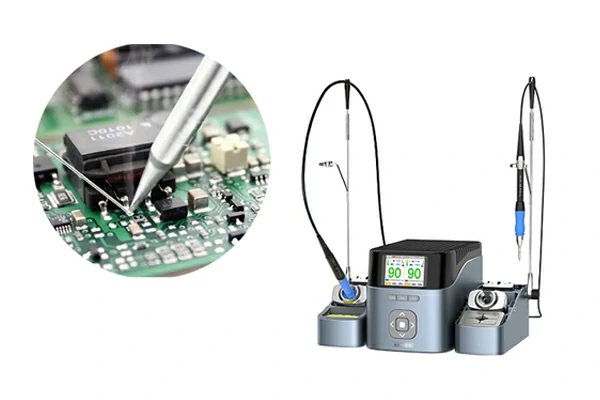

soldering station


Should You Choose a Soldering Station or Soldering Gun?


The choice depends on the complexity of the task and the level of precision required. For detailed and professional work, a soldering station is ideal. For quick repairs and DIY projects, a soldering gun is more convenient.

Explore more about AiXun soldering stations and guns on our official website. We welcome distributors and business partners to visit or inquire. Enhance your soldering experience with the right tools and ensure the best results for your projects!
